Pulper With Belt Conveyor & Slat Conveyor
PULPMIL EQUIPMENT- Medium Consistency Pulper for slushing all types of waste paper and machine broke.
- It is a continuous type pulper which has a very good efficiency
- Pulper is provided with a S.S. Perforated Screen plate hole diameter depending on the raw material quality.
- Pulper is available in a variety of sizes according to requirement.
- The raw material is fed using a suitable belt conveyor and slat conveyor.
- By utilizing the ragger rape, spinning materials such as wire, rags, and strings can be removed.

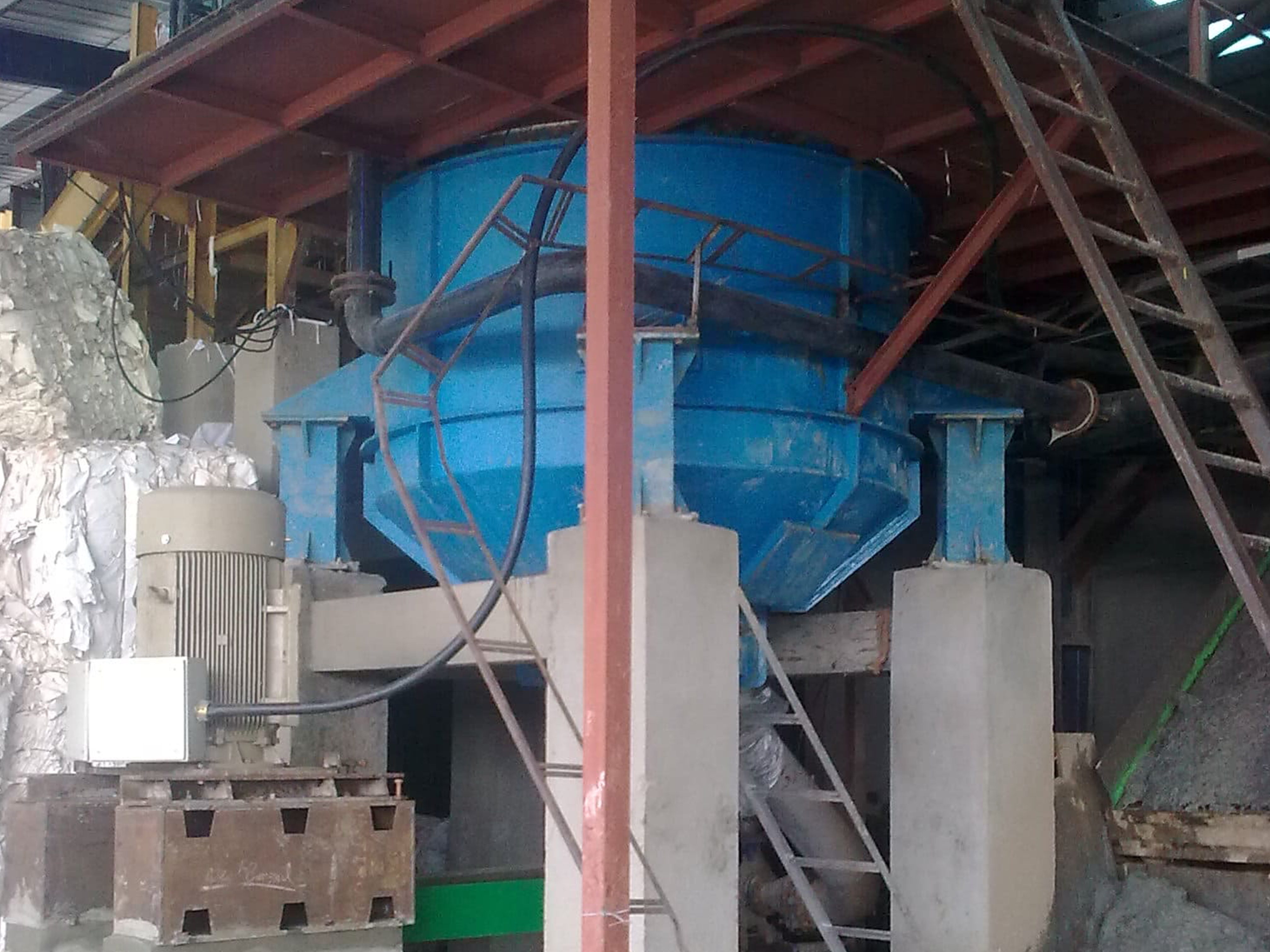

Hi Consistency Pulper
PULPMIL EQUIPMENT- The High Consistency Pulper is designed for slushing waste paper at a consistency range from 13-18% with minimal fines generation.
- It is a batch type pulper with an excellent defbration effect.
- Separation of fibers and contaminants with the greatest efficiency by breaking them up to enable their subsequent removal.
- The quality of disintegrated stock can result in considerable energy savings in terms of refning power.
- Assuming the same daily production, we require less floor space than conventional pulpers.
- Because the peripheral rotor speed is low, energy is transferred exclusively through friction without shocks or shearing effects.
High Density Cleaner
PULPMIL EQUIPMENT- By using centrifugal force, heavy contamination can be extracted efficiently.
- Least fiber loss.
- Lighting arrangement for clear visibility of separation process.
- A clog-free operation.

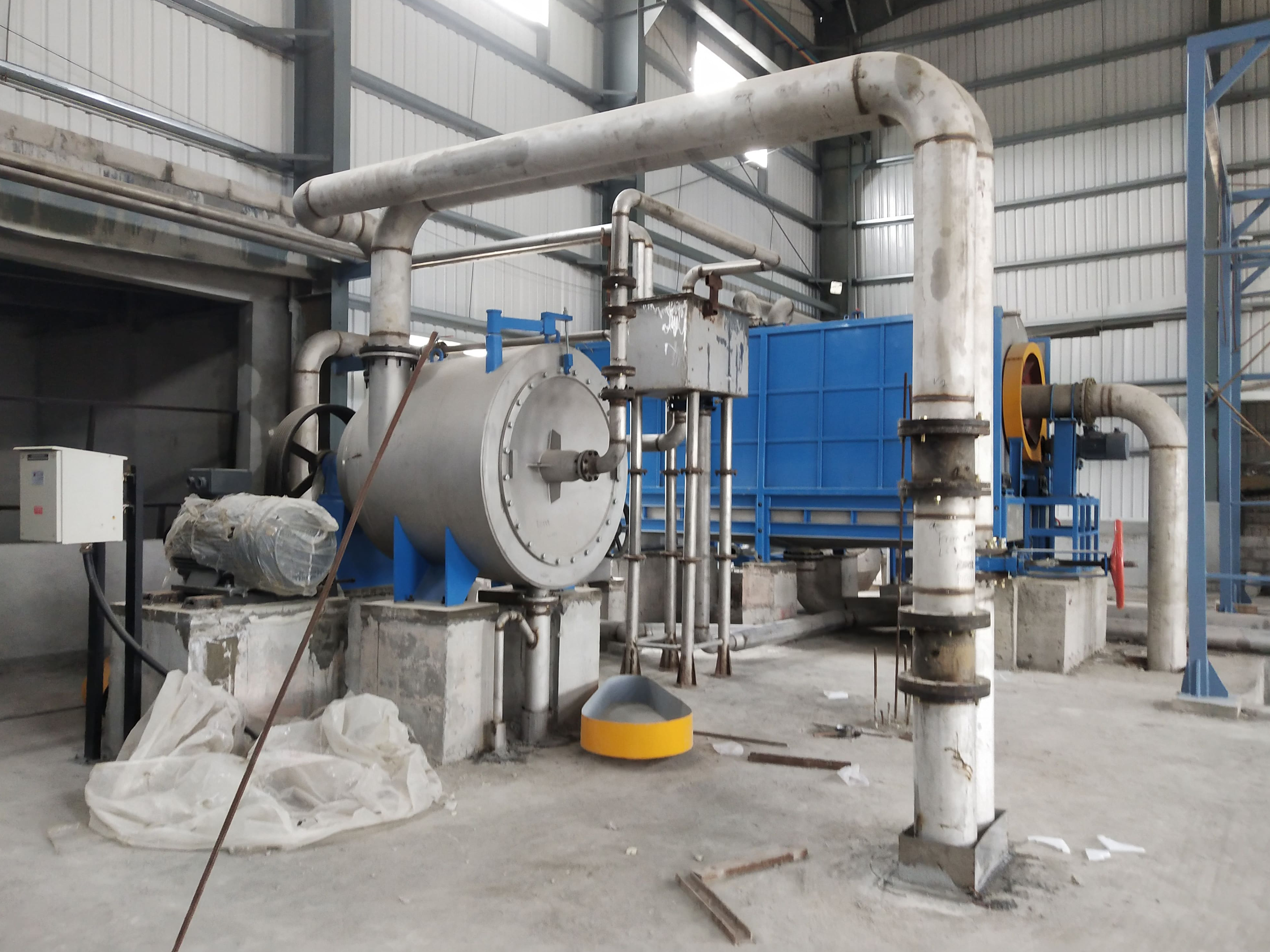

Turbo Separator
PULPMIL EQUIPMENT- Separates light and heavy impurities effectively.
- Minimum fiber loss.
- The body is comprised of stainless steel, with a mild steel base frame and stiffeners. The Economy variant is made entirely of mild steel and has 55 cladding in the feed chamber.
- The 5.5, rotor creates a force vortex in the Separator. Centrifugal force propels the heavy particles outward into the garbage trap. The rotor and screen are meant to slush paper chips and remove all non-fibrous material, which is sent to a secondary separator or Johnson Screen for further treatment.
- The accept stock is filtered through a screen installed behind the rotor.

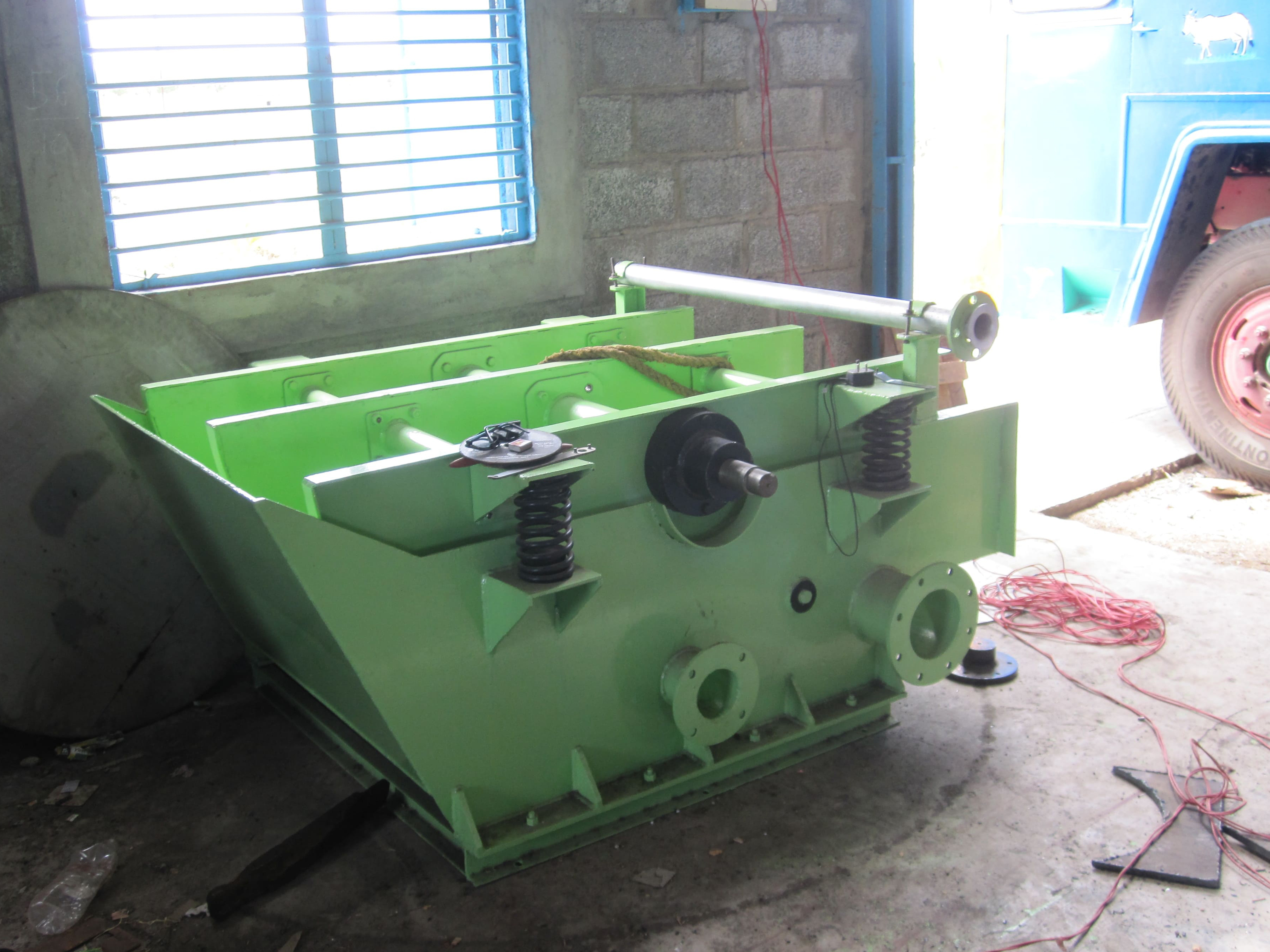

Vibratating Screen
PULPMIL EQUIPMENT- It is helps in removing plastic.

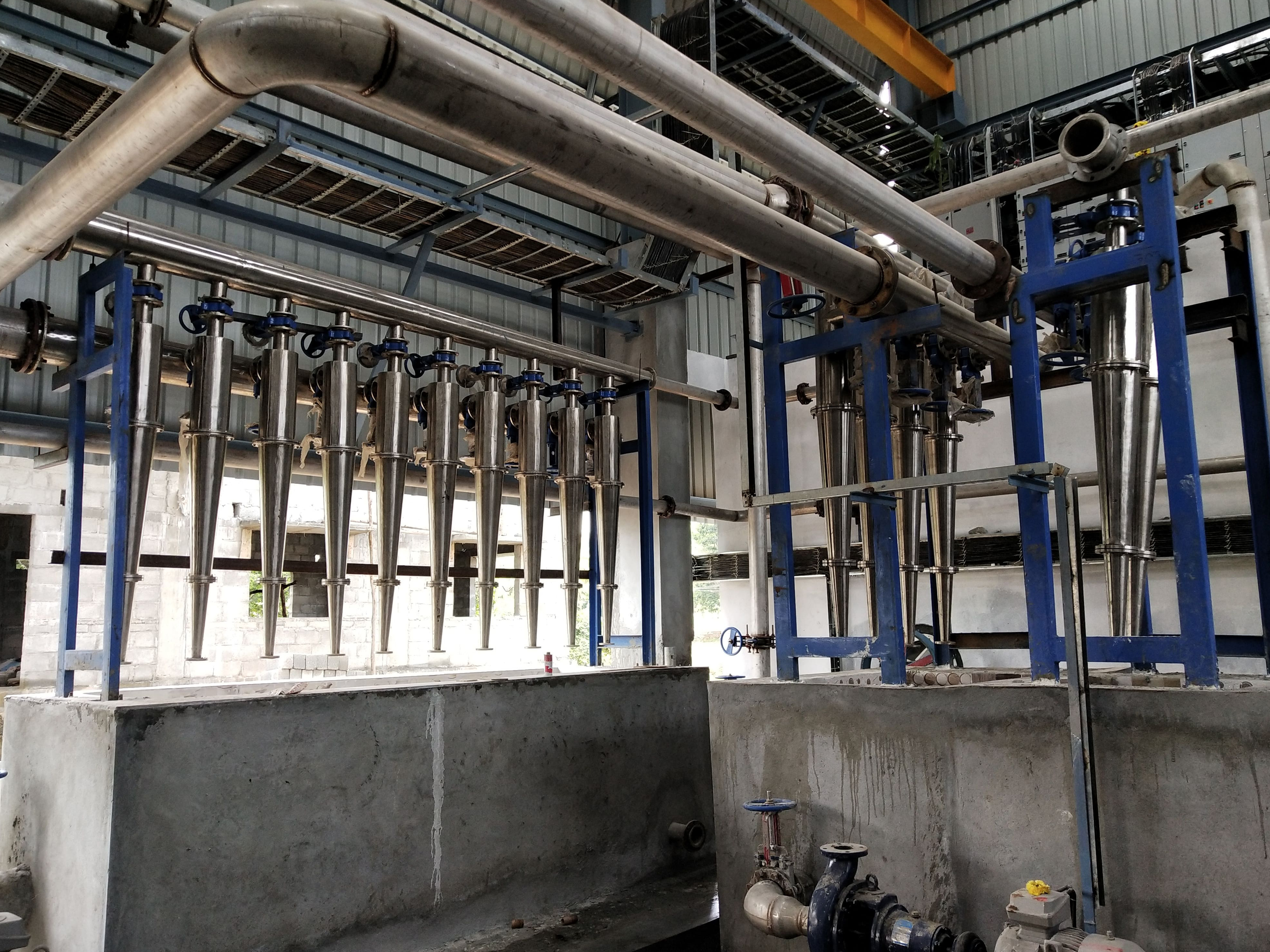

Centricleaners
PULPMIL EQUIPMENT- Low fibre rejection.
- Low pressure drop.
- Effective removal of sand, unbeaten paper pieces, hard cooked fibres, and other non- fibrous heavy materials.
- Made of stainless steel 304 and 316.
- Intel Tapered Headers in Stainless Steel with Pulp Valve.
- Through p uts of 500 and 1000 LPM are available.
- Fiber recovery plan in the final stage.

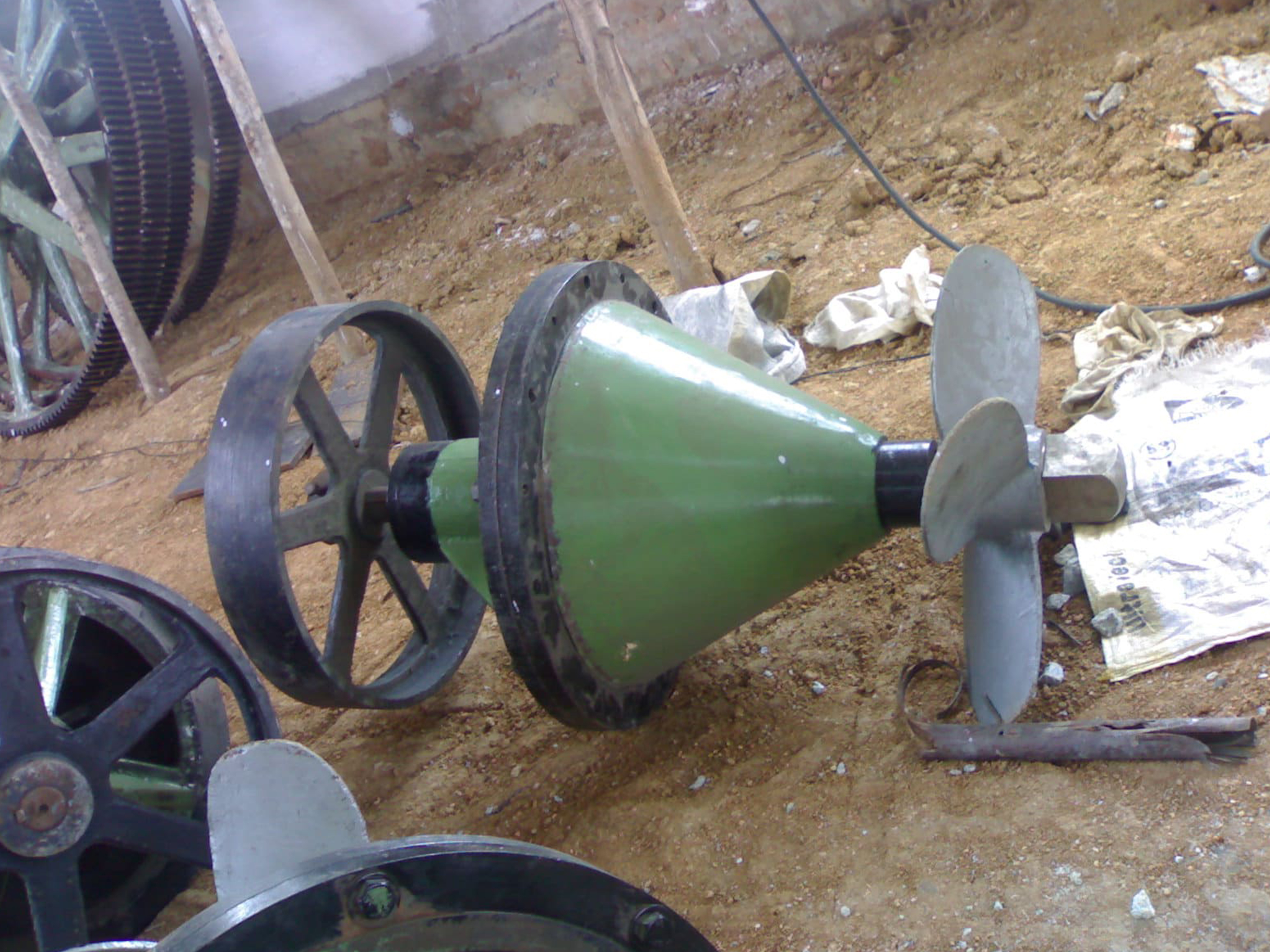

Stock Chest Agitators
PULPMIL EQUIPMENT- Energy-saving agitators are used in a variety of pulp storage chests, including High Density Towers, Mixing Chests, and Machine Chests. Bearings and Glands are included in the strong design. Outside, changeable propeller blades with an ideal design. The agitators are very energy efcient and have the ability to alter the vane angle to suit individual process requirements of moderate or powerful agitation. All parts that come into contact with stock are composed of stainless steel.
Stock Chest Agitators
PULPMIL EQUIPMENT- Energy-saving agitators are used in a variety of pulp storage chests, including High Density Towers, Mixing Chests, and Machine Chests. Bearings and Glands are included in the strong design. Outside, changeable propeller blades with an ideal design. The agitators are very energy efficient and have the ability to alter the vane angle to suit individual process requirements of moderate or powerful agitation. All parts that come into contact with stock are composed of stainless steel.

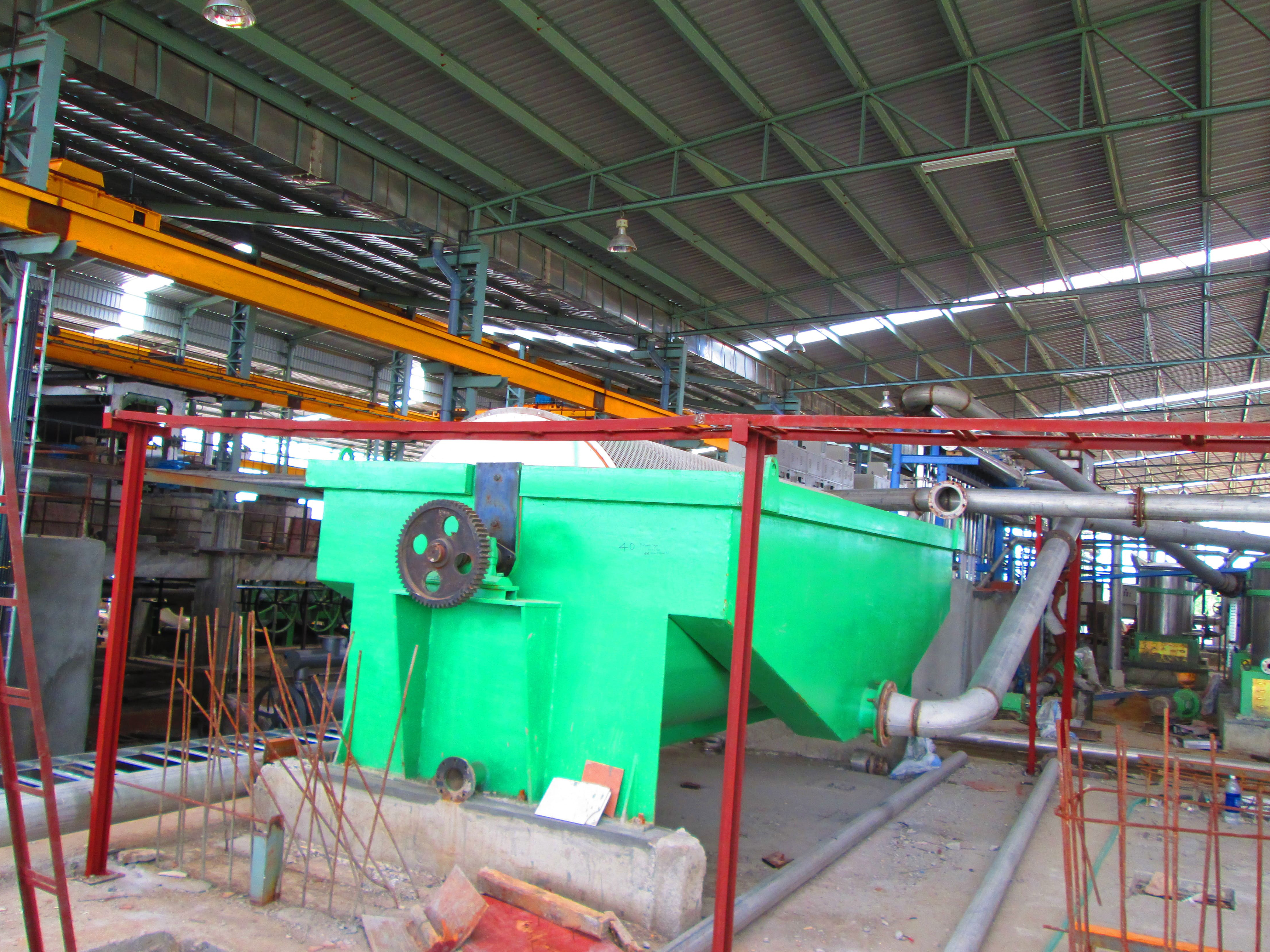

Stock Thickener
SB ERECTORS- The Decker Thickener, which compresses CI / SS Moulds and MS / SS Vat, is ideal for removing surplus water from stock.
- Sizes range from 2.00 mtrs to 3.00 mtrs, depending on the capacity of the process.
- Minimum fibre loss owing to modified cum washing purpose
- Constructed in SS 304 and SS 316 material
- Driven with Variable Speed drive for adjusting the drainage of different types of stock
Stock Thickener
PAPER MACHINE- Machine speed up to 350 metres per minute with an open head box.
- Slices with a width of up to 5500 mm are routinely produced.
- Maximum 3 GSM prole variance over the deckle
- Depending on the quality and manufacturing capacity of EVENERRO, Cylindrical, Tapered, and Rectangular Tapered with Polypick diffuser, Manifold are available
- Two digits Evener rolls with a proper design for a better evening effect and deflocculation
- Top and bottom lips are machined and ground for a smooth stock flow.
Wire Part
PAPER MACHINE - Single Wire, Twin Wire, Triple Wire & Four Wire- Wire part with high efficiency and Plain Couch roll
- Drainage components are built according to machine speed, stock freeness, and other factors.
- Automatic or manual transmission Arrangement for wire guiding
- On the frame, a cantilever design allows for rapid wire changes.
- MS-fabricated frame with S.S. cladding of 2 mm

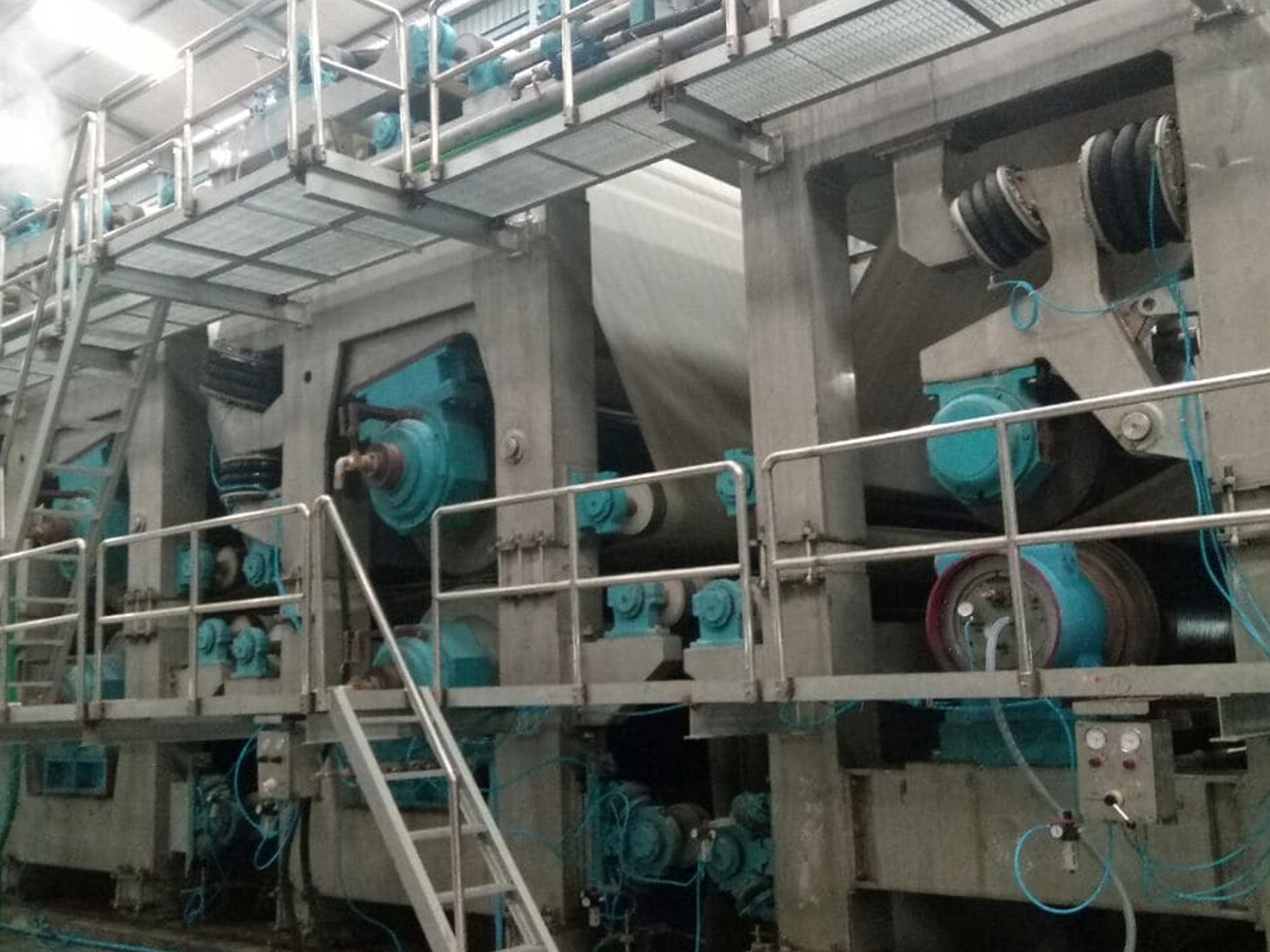

Press Part
PAPER MACHINE- High-efficiency presses with blind drill coating on top and bottom rolls with felting
- high-speed setup There are presses that can handle up to 150 Kg / linear cm.
- Extremely durable.
- Heavy duty frame with hydraulic or pneumatic lading system is available on a regular basis up to a completed diameter of 1000 mm.

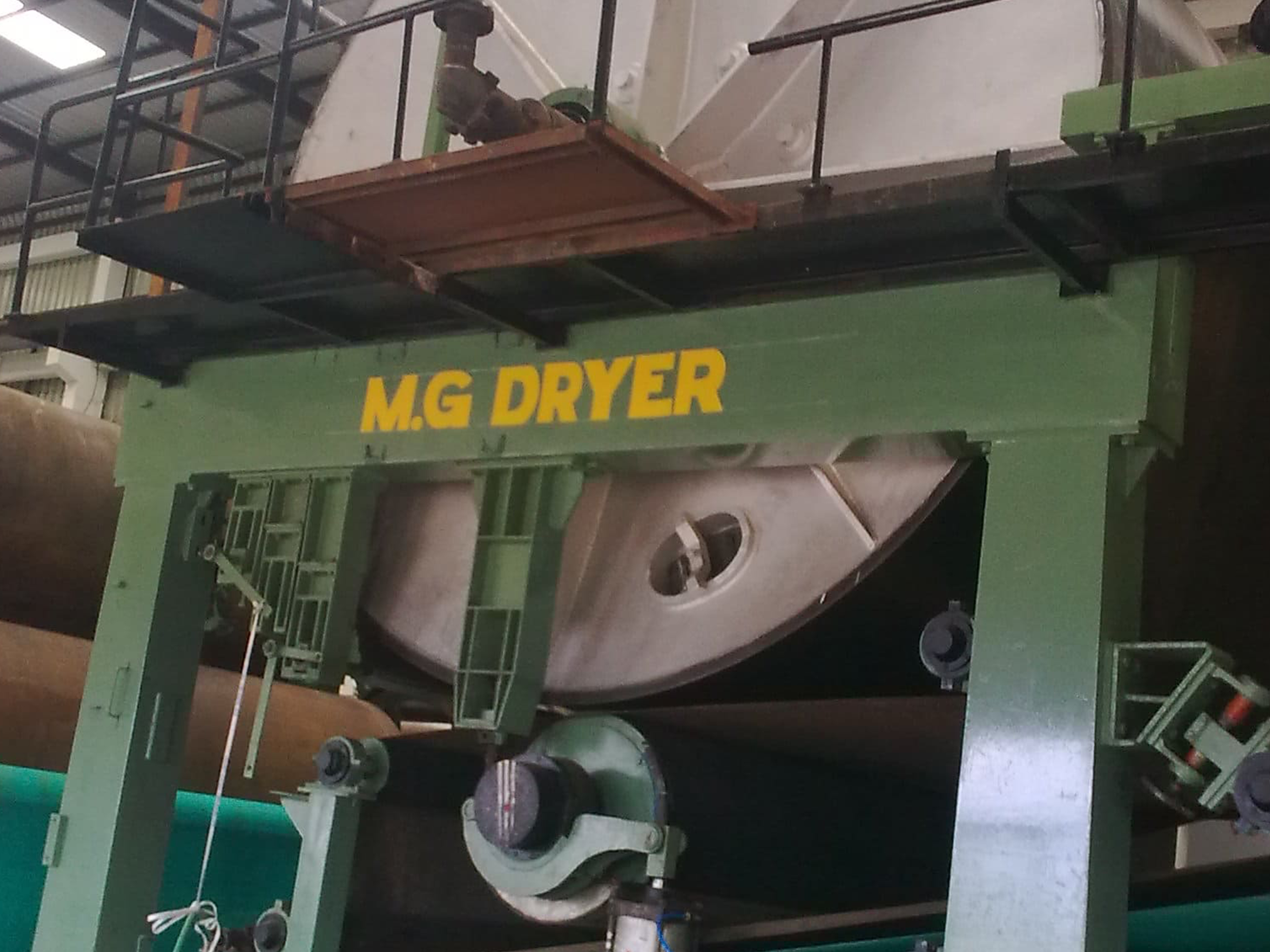

M.G. Cylinder
PAPER MACHINE- MS produced M.G.Cylinders with a diameter of up to 16 feet (4.88 metres).
- Widths of up to 4.00 mtrs are often produced.
- Surface SS Coating (Optional).
- Stress released to eliminate strains caused by bending and manufacturing.
- The surface is machined and honed to obtain a Mirror finish - Ra 8 micron finish.
- Condensate is effectively removed using a scooping method.
- Vibration-free operation is ensured by heavy-duty frame.
- Depending on the method, a Single or Double Touch roll is available.
- For noise-free operation, spur gear and pinion teeth are geometrically uniformly cut on a precision Hobbing Machine in Cast Iron / MS Fabrication / poly pick.
- The MG Cylinder can withstand operating pressures of up to 6.0 Kgs/cm2.
- Hydraulically tested for 24 hours at a pressure of 11.0 Kgs/cm2.

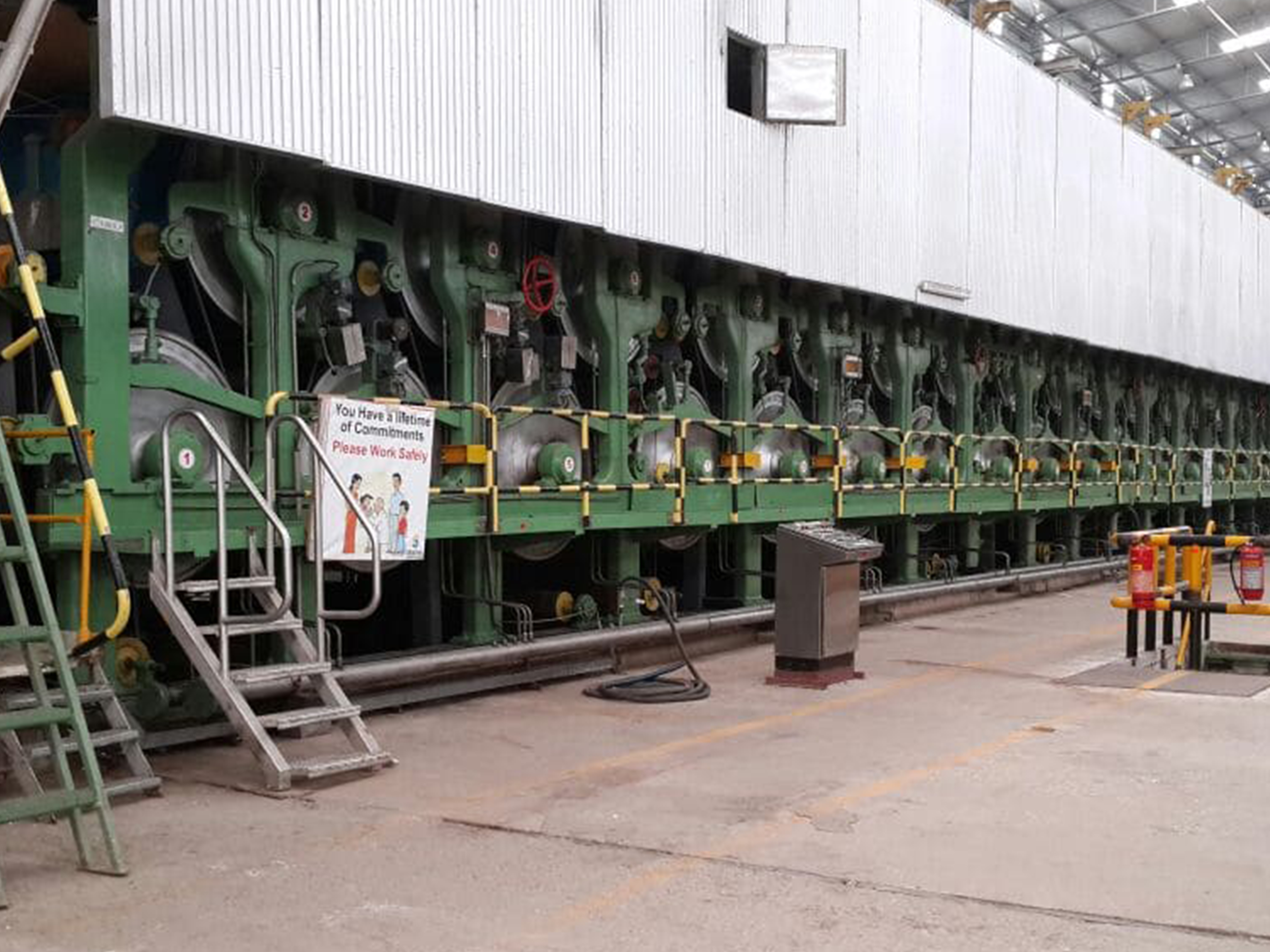

Dryer Section
PAPER MACHINE- High evaporation rate M.S. (B.Q. Plate) fabricated drying cylinders.
- Available in diameters of 4 feet, 5 feet, and 6 feet.
- Shell thicknesses ranging from 25 mm to 36 mm.
- Operating pressure up to 4.5 kg/cm2 and particularly developed for greater operating pressures up to 6.0 kg/cm2..
- Appropriate heavy-duty frame in Graded Cast Iron and Mild Steel construction for optimal paper coverage at the drier.
- For machine speeds greater than 200 MPM, a rope feeding system is available.
- A dryer surface with a Ra micron polish that is dynamically adjusted to a grade of 6.3 (ISO 1940)

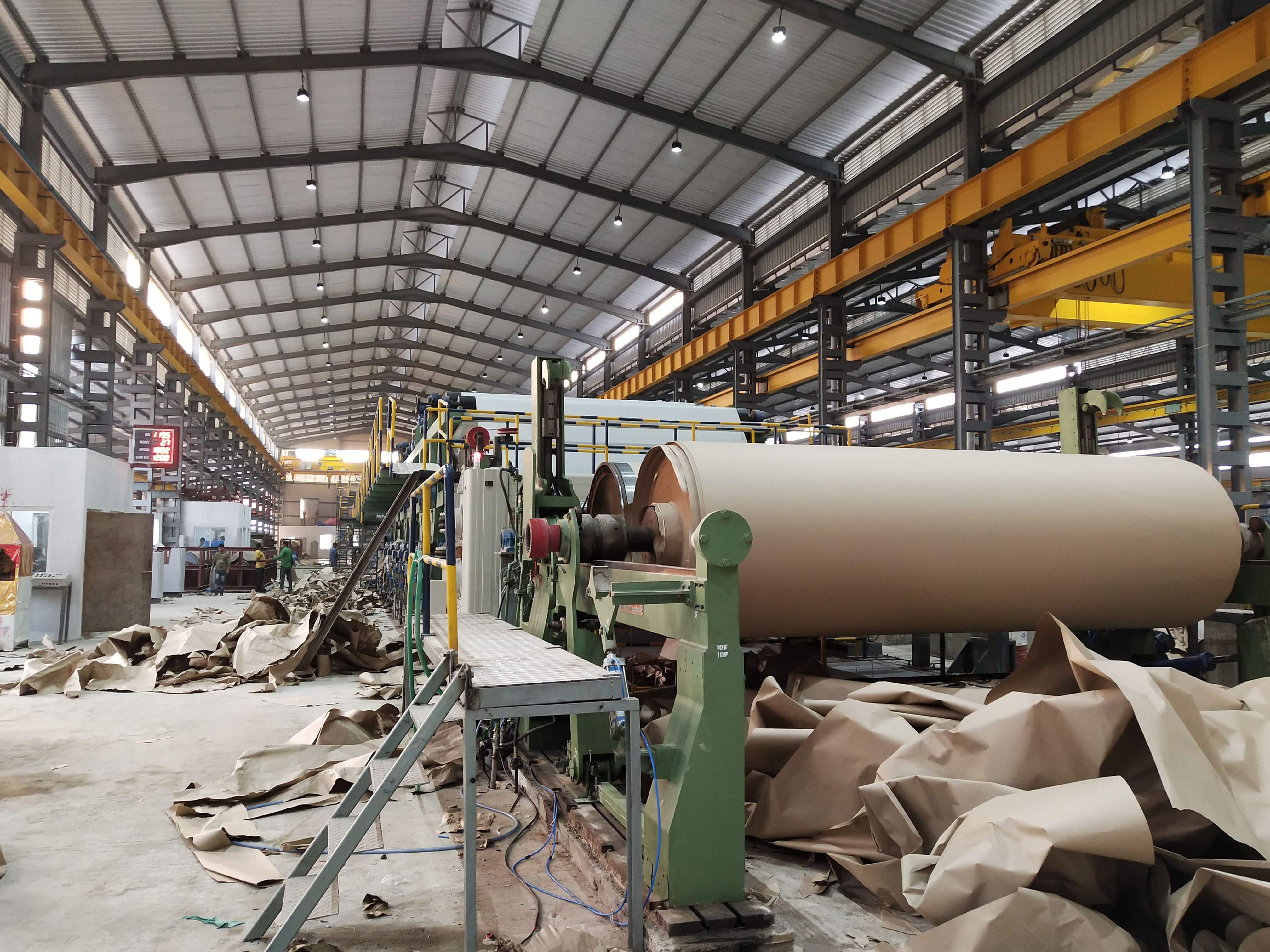

Pope Reeler
PAPER MACHINE- The Pope Reeler is based on the friction winding concept.
- The primary takeaway The arm is loaded pneumatically / hydraulically and mechanically tilted hydraulically with manual control.
- The secondary arm is pneumatically or hydraulically loaded.
- The Pope drum is made by MS. Fabricated and built to withstand the needed nip pressure, with a doctoring arrangement included.
- Heavy-duty framing in Cast Iron construction.

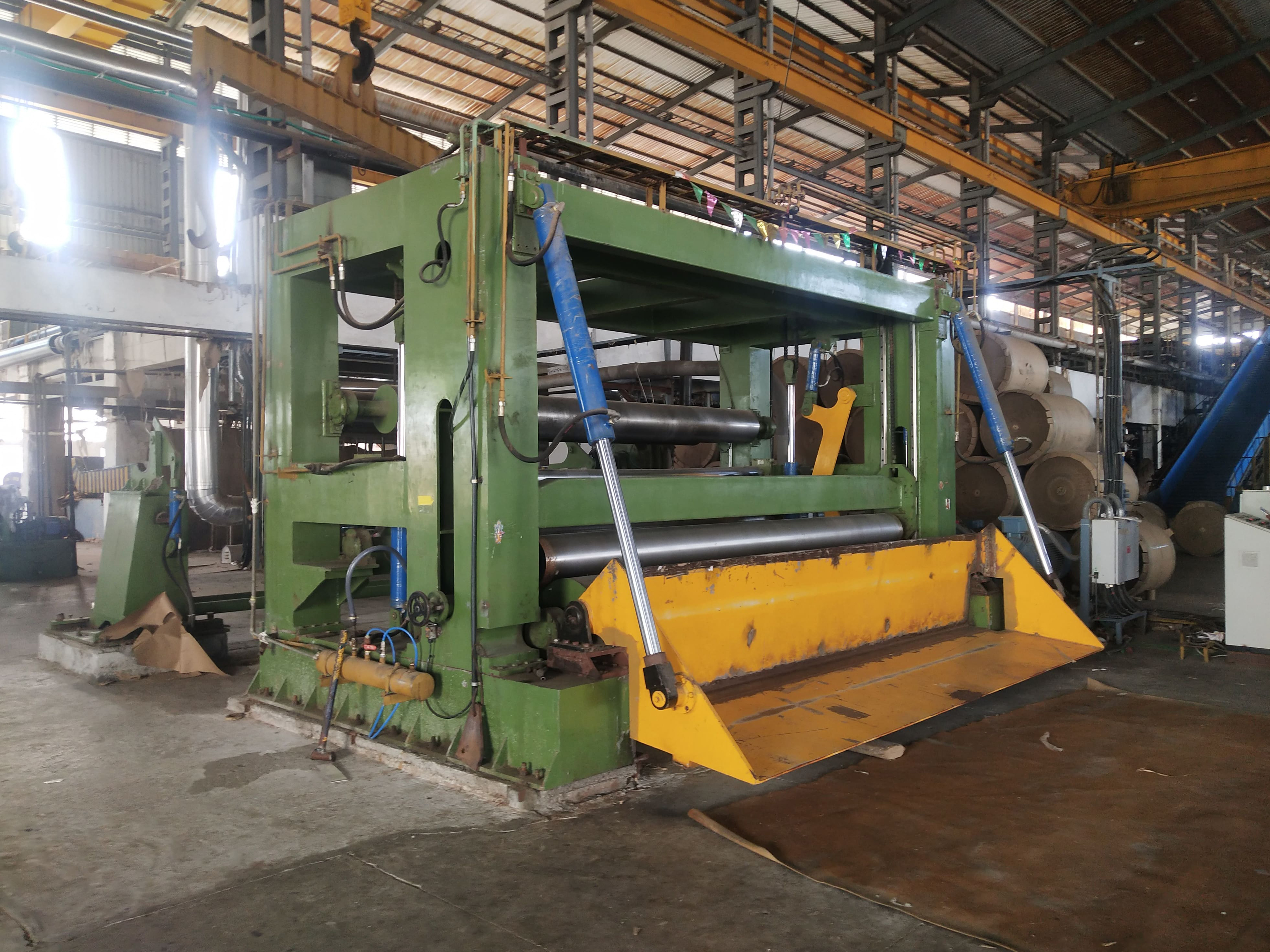

Rewinder
PAPER MACHINE- Rewinding is done by friction on double drum rolls appropriately loaded with chrome coated Rider Rolls for trimming and rewinding of Paper Web in specified Reel Size.
- Trimming knives that are pneumatically loaded are used for slitting.
- The MS was manufactured with frame stiffeners and a Cast Iron Slide rail.
- Rider Roll is balanced pneumatically.
- Dislodging the rewound roll on the collection table with a pusher roll.
- Braking system that is pneumatically controlled.
- Blower and Dual Ventilation are included in the Trim Handling System.
- The maximum operating speed is 500 MPM, and it is controlled by a DC/AC variable speed drive.
Drive Arrangement for paper Machine
PAPER MACHINE- Depending on the machine speed, line shaft and sectional drives are used.
- Worm Gear Boxes / Bevel Helical Gear Boxes (heavy duty).
- Shaft drive is lined with pneumatically actuated Rubber tube clutches with shoe grips.
- Cone Pulley in various sizes.
- AC Variable Frequency Drive / DC Variable Frequency Drive.
- DC variable speed drives with digital synchronisation for sectional drives.
- Belt shifters that are operated by hand. There is also a motorised alternative.
R.F. Cylinder Mould Former for Multilayer Paper Board
PAPER MACHINE- Made entirely of stainless steel; suitable for machine speeds up to 120 MPM.
- Lowest Variation in Profile
- Excellent sheet pickup and forming from 35 GSM to 120 GSM.
- Rubber cord sealing prevents fibre loss.
- Air suction on the wire improves dewatering.
- Adjustable couch roll to the left or right.
- Suction knife made of stainless steel for removing water from the sofa nip.
Size Press and Size Kitchen
PAPER MACHINE- Rolls are coated with unique rubber appropriate for surface sizing and are inclined size press developed for on line sizing on paper/paper board.
- Stainless steel construction in a large kitchen.
